Mouse Connexin 40 / GJA5 ELISA Kit
- SKU:
- MOFI00757
- Product Type:
- ELISA Kit
- Size:
- 96 Assays
- Uniprot:
- Q01231
- Sensitivity:
- 11.719pg/ml
- Range:
- 19.531-1250pg/ml
- ELISA Type:
- Sandwich ELISA, Double Antibody
- Synonyms:
- CX40, ATFB11, GJA5, alpha 5, 40kD, connexin 40, connexin-40, Connexin-40, Cx40, gap junction alpha-5 protein, gap junction protein, alpha 5, 40kDa, gap junction protein, alpha 5, 40kDa, connexin 40, MGC11185
- Reactivity:
- Mouse
Description
| 商品名: | Mouse Connexin 40 / GJA5 ELISA Kit |
| 製品コード: | MOFI00757 |
| サイズ: | 96 Assays |
| エイリアス: | CX40, ATFB11, GJA5, alpha 5, 40kD, connexin 40, connexin-40, Connexin-40, Cx40, gap junction alpha-5 protein, gap junction protein, alpha 5, 40kDa, gap junction protein, alpha 5, 40kDa, connexin 40, MGC11185 |
| 検出方法: | Sandwich ELISA |
| 申し込み: | This immunoassay kit allows for the in vitro quantitative determination of Mouse CX40 concentrations in serum plasma and other biological fluids. |
| 感度: | 11.719pg/ml |
| 範囲: | 19.531-1250pg/ml |
| 保管所: | 4°C for 6 months |
| ノート: | For Research Use Only |

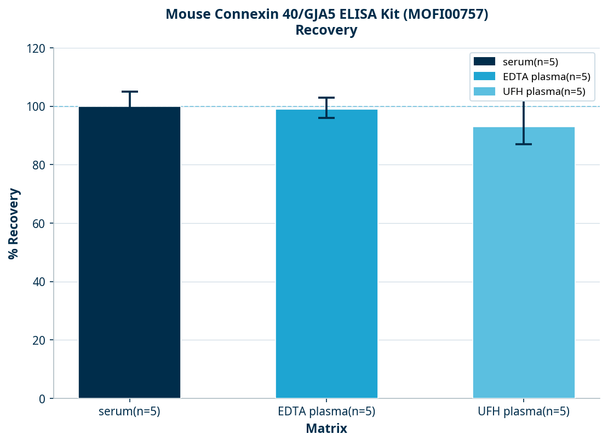

| 回復: | Matrices listed below were spiked with certain level of Mouse CX40 and the recovery rates were calculated by comparing the measured value to the expected amount of Mouse CX40 in samples. | ||||||||||||||||
| |||||||||||||||||
| 直線性: | The linearity of the kit was assayed by testing samples spiked with appropriate concentration of Mouse CX40 and their serial dilutions. The results were demonstrated by the percentage of calculated concentration to the expected. | ||||||||||||||||
| |||||||||||||||||
| Intra Assay: | CV <8% | ||||||||||||||||
| Inter Assay: | CV <10% |
| 成分 | 量 | 保管所 |
| ELISA Microplate (Dismountable) | 8-12 strips | 4°C for 6 months |
| Lyophilized Standard | 2 | 4°C/-20°C |
| Sample/Standard Dilution Buffer | 20ml | 4°C |
| Biotin-labeled Antibody(Concentrated) | 120ul | 4°C (Protect from light) |
| Antibody Dilution Buffer | 10ml | 4°C |
| HRP-Streptavidin Conjugate(SABC) | 120ul | 4°C (Protect from light) |
| SABC Dilution Buffer | 10ml | 4°C |
| TMB Substrate | 10ml | 4°C (Protect from light) |
| Stop Solution | 10ml | 4°C |
| Wash Buffer(25X) | 30ml | 4°C |
| Plate Sealer | 5 | - |
必要なその他の材料と設備：
- Microplate reader with 450 nm wavelength filter
- Multichannel Pipette, Pipette, microcentrifuge tubes and disposable pipette tips
- Incubator
- Deionized or distilled water
- Absorbent paper
- Buffer resevoir
| Uniprot | Q01231 |
| UniProt Protein Function: | GJA5: One gap junction consists of a cluster of closely packed pairs of transmembrane channels, the connexons, through which materials of low MW diffuse from one cell to a neighboring cell. Defects in GJA5 are a cause of familial atrial standstill (FAS). Atrial standstill is an extremely rare arrhythmia, characterized by the absence of electrical and mechanical activity in the atria. Electrocardiographically, it is characterized by bradycardia, the absence of P waves, and a junctional narrow complex escape rhythm. Defects in GJA5 are the cause of familial atrial fibrillation type 11 (ATFB11). ATFB11 is a familial form of atrial fibrillation, a common sustained cardiac rhythm disturbance. Atrial fibrillation is characterized by disorganized atrial electrical activity and ineffective atrial contraction promoting blood stasis in the atria and reduces ventricular filling. It can result in palpitations, syncope, thromboembolic stroke, and congestive heart failure. Belongs to the connexin family. Alpha-type (group II) subfamily. |
| UniProt Protein Details: | Protein type:Membrane protein, integral; Motility/polarity/chemotaxis; Membrane protein, multi-pass; Channel, misc. Cellular Component: connexon complex; cell projection; membrane; integral to plasma membrane; integral to membrane; gap junction; plasma membrane; cell junction Molecular Function:gap junction hemi-channel activity; gap junction channel activity Biological Process: blood vessel development; negative regulation of glomerular filtration; gap junction assembly; regulation of vasodilation; positive regulation of vasodilation; protein oligomerization; regulation of systemic arterial blood pressure; positive regulation of vasoconstriction; artery morphogenesis; regulation of systemic arterial blood pressure by renal system process; embryonic heart tube development; cell communication; negative regulation of blood pressure; skeletal development; potassium ion transport; embryonic limb morphogenesis |
| UniProt Code: | Q01231 |
| NCBI GenInfo Identifier: | 50514 |
| NCBI Gene ID: | 14613 |
| NCBI Accession: | CAA43850.1 |
| UniProt Related Accession: | Q01231 |
| Molecular Weight: | 40,413 Da |
| NCBI Full Name: | Cx40 |
| NCBI Synonym Full Names: | gap junction protein, alpha 5 |
| NCBI Official Symbol: | Gja5 |
| NCBI Official Synonym Symbols: | Cx40; Cnx40; Gja-5; 5730555N10Rik |
| NCBI Protein Information: | gap junction alpha-5 protein; connexin-40; gap junction membrane channel protein alpha 5 |
| UniProt Protein Name: | Gap junction alpha-5 protein |
| UniProt Synonym Protein Names: | Connexin-40 |
| UniProt Gene Name: | Gja5 |
| UniProt Entry Name: | CXA5_MOUSE |
*ノート: プロトコルは、各バッチ/ロットに固有です。正しい手順については、キットに含まれているプロトコルに従ってください。
| ステップ | 手順 |
| 1. | Set standard, test sample and control (zero) wells on the pre-coated plate respectively, and then, record their positions. It is recommended to measure each standard and sample in duplicate. Wash plate 2 times before adding standard, sample and control (zero) wells! |
| 2. | Aliquot 0.1ml standard solutions into the standard wells. |
| 3. | Add 0.1 ml of Sample / Standard dilution buffer into the control (zero) well. |
| 4. | Add 0.1 ml of properly diluted sample (Human serum, plasma, tissue homogenates and other biological fluids.) into test sample wells. |
| 5. | Seal the plate with a cover and incubate at 37 °C for 90 min. |
| 6. | Remove the cover and discard the plate content, clap the plate on the absorbent filter papers or other absorbent material. Do NOT let the wells completely dry at any time. Wash plate X2. |
| 7. | Add 0.1 ml of Biotin- detection antibody working solution into the above wells (standard, test sample & zero wells). Add the solution at the bottom of each well without touching the side wall. |
| 8. | Seal the plate with a cover and incubate at 37°C for 60 min. |
| 9. | Remove the cover, and wash plate 3 times with Wash buffer. Let wash buffer rest in wells for 1 min between each wash. |
| 10. | Add 0.1 ml of SABC working solution into each well, cover the plate and incubate at 37°C for 30 min. |
| 11. | Remove the cover and wash plate 5 times with Wash buffer, and each time let the wash buffer stay in the wells for 1-2 min. |
| 12. | Add 90 µL of TMB substrate into each well, cover the plate and incubate at 37°C in dark within 10-20 min. (Note: This incubation time is for reference use only, the optimal time should be determined by end user.) And the shades of blue can be seen in the first 3-4 wells (with most concentrated standard solutions), the other wells show no obvious color. |
| 13. | Add 50 µL of Stop solution into each well and mix thoroughly. The color changes into yellow immediately. |
| 14. | Read the O.D. absorbance at 450 nm in a microplate reader immediately after adding the stop solution. |
ELISAアッセイを実施する場合、可能な限り最良の結果を達成するためにサンプルを準備することが重要です。以下に、さまざまなサンプルタイプのサンプルを準備するための手順のリストを示します。
| サンプルタイプ | プロトコル |
| 血清: | If using serum separator tubes, allow samples to clot for 30 minutes at room temperature. Centrifuge for 10 minutes at 1,000x g. Collect the serum fraction and assay promptly or aliquot and store the samples at -80°C. Avoid multiple freeze-thaw cycles. If serum separator tubes are not being used, allow samples to clot overnight at 2-8°C. Centrifuge for 10 minutes at 1,000x g. Remove serum and assay promptly or aliquot and store the samples at -80°C. Avoid multiple freeze-thaw cycles. |
| プラズマ: | Collect plasma using EDTA or heparin as an anticoagulant. Centrifuge samples at 4°C for 15 mins at 1000 - g within 30 mins of collection. Collect the plasma fraction and assay promptly or aliquot and store the samples at -80°C. Avoid multiple freeze-thaw cycles. Note: Over haemolysed samples are not suitable for use with this kit. |
| 尿および脳脊髄液: | Collect the urine (mid-stream) in a sterile container, centrifuge for 20 mins at 2000-3000 rpm. Remove supernatant and assay immediately. If any precipitation is detected, repeat the centrifugation step. A similar protocol can be used for cerebrospinal fluid. |
| 細胞培養上清: | Collect the cell culture media by pipette, followed by centrifugation at 4°C for 20 mins at 1500 rpm. Collect the clear supernatant and assay immediately. |
| 細胞溶解物: | Solubilize cells in lysis buffer and allow to sit on ice for 30 minutes. Centrifuge tubes at 14,000 x g for 5 minutes to remove insoluble material. Aliquot the supernatant into a new tube and discard the remaining whole cell extract. Quantify total protein concentration using a total protein assay. Assay immediately or aliquot and store at ≤ -20°C. |
| 組織ホモジネート: | The preparation of tissue homogenates will vary depending upon tissue type. Rinse tissue with 1X PBS to remove excess blood & homogenize in 20ml of 1X PBS (including protease inhibitors) and store overnight at ≤ -20°C. Two freeze-thaw cycles are required to break the cell membranes. To further disrupt the cell membranes you can sonicate the samples. Centrifuge homogenates for 5 mins at 5000xg. Remove the supernatant and assay immediately or aliquot and store at -20°C or -80°C. |
| 組織溶解物: | Rinse tissue with PBS, cut into 1-2 mm pieces, and homogenize with a tissue homogenizer in PBS. Add an equal volume of RIPA buffer containing protease inhibitors and lyse tissues at room temperature for 30 minutes with gentle agitation. Centrifuge to remove debris. Quantify total protein concentration using a total protein assay. Assay immediately or aliquot and store at ≤ -20 °C. |
| 母乳: | Collect milk samples and centrifuge at 10,000 x g for 60 min at 4°C. Aliquot the supernatant and assay. For long term use, store samples at -80°C. Minimize freeze/thaw cycles. |
