人間 TLR4 ELISA Kit (HUFI00788)- 高感度

商品名:	Human TLR4 ELISA Kit
製品コード:	HUFI00788
サイズ:	96T
エイリアス:	TLR4, CD284, ARMD10, CD284 antigen, hTollhomolog of Drosophila toll, TOLL, toll-like receptor 4
検出方法:	Sandwich ELISA, Double Antibody
申し込み:	This immunoassay kit allows for the in vitro quantitative determination of Human TLR4 concentrations in serum plasma and other biological fluids.
感度:	0.188ng/ml
範囲:	0.313-20ng/ml
保管所:	4°C for 6 months
ノート:	For Research Use Only

回復:

Matrices listed below were spiked with certain level of Human TLR4 and the recovery rates were calculated by comparing the measured value to the expected amount of Human TLR4 in samples.

Matrix	Recovery range(%)	Average(%)
serum(n=5)	90-95	92
EDTA plasma(n=5)	85-105	94
UFH plasma(n=5)	86-105	95

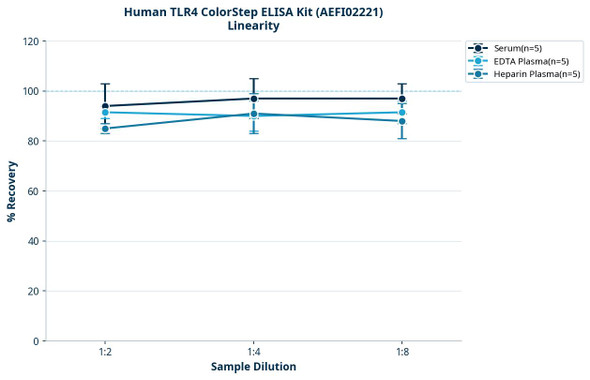

直線性:

The linearity of the kit was assayed by testing samples spiked with appropriate concentration of Human TLR4 and their serial dilutions. The results were demonstrated by the percentage of calculated concentration to the expected.

Sample	1:2	1:4	1:8
serum(n=5)	90-102%	89-105%	87-101%
EDTA plasma(n=5)	86-101%	85-99%	86-101%
UFH plasma(n=5)	80-99%	81-100%	81-89%

CV(%):

Intra-Assay: CV<8%
Inter-Assay: CV<10%

成分	量	保管所
ELISA Microplate (Dismountable)	8×12 strips	4°C for 6 months
Lyophilized Standard	2	4°C/-20°C
Sample/Standard Dilution Buffer	20ml	4°C
Biotin-labeled Antibody(Concentrated)	120ul	4°C (Protect from light)
Antibody Dilution Buffer	10ml	4°C
HRP-Streptavidin Conjugate(SABC)	120ul	4°C (Protect from light)
SABC Dilution Buffer	10ml	4°C
TMB Substrate	10ml	4°C (Protect from light)
Stop Solution	10ml	4°C
Wash Buffer(25X)	30ml	4°C
Plate Sealer	5	-

必要なその他の材料と設備:

Microplate reader with 450 nm wavelength filter
Multichannel Pipette, Pipette, microcentrifuge tubes and disposable pipette tips
Incubator
Deionized or distilled water
Absorbent paper
Buffer resevoir

Uniprot

O00206

UniProt Protein Function:	TLR4: Cooperates with LY96 and CD14 to mediate the innate immune response to bacterial lipopolysaccharide (LPS). Acts via MYD88, TIRAP and TRAF6, leading to NF-kappa-B activation, cytokine secretion and the inflammatory response. Also involved in LPS- independent inflammatory responses triggered by Ni(2+). These responses require non-conserved histidines and are, therefore, species-specific. Belongs to the lipopolysaccharide (LPS) receptor, a multi-protein complex containing at least CD14, LY96 and TLR4. Binding to bacterial LPS leads to homodimerization. Interacts with LY96 via the extracellular domain. Interacts with MYD88 and TIRAP via their respective TIR domains. Interacts with NOX4. Interacts with CNPY3. Interacts with HSP90B1. The interaction with both CNPY3 and HSP90B1 is required for proper folding in the endoplasmic reticulum. Highly expressed in placenta, spleen and peripheral blood leukocytes. Detected in monocytes, macrophages, dendritic cells and several types of T-cells. Belongs to the Toll-like receptor family. 3 isoforms of the human protein are produced by alternative splicing.
UniProt Protein Details:	Protein type:Membrane protein, integral; Receptor, misc. Chromosomal Location of Human Ortholog: 9q33.1 Cellular Component: integral to plasma membrane; perinuclear region of cytoplasm; cytoplasm; plasma membrane; lipopolysaccharide receptor complex; endosome membrane; external side of plasma membrane Molecular Function:protein binding; transmembrane receptor activity; lipopolysaccharide binding; lipopolysaccharide receptor activity; receptor activity Biological Process: I-kappaB kinase/NF-kappaB cascade; positive regulation of nitric oxide biosynthetic process; activation of MAPK activity; response to lipopolysaccharide; positive regulation of NF-kappaB import into nucleus; toll-like receptor 3 signaling pathway; positive regulation of interleukin-10 production; activation of NF-kappaB transcription factor; positive regulation of interferon-beta production; negative regulation of interleukin-6 production; positive regulation of B cell proliferation; toll-like receptor 4 signaling pathway; positive regulation of interferon-alpha production; T-helper 1 type immune response; production of nitric oxide during acute inflammatory response; positive regulation of interleukin-6 production; positive regulation of interleukin-8 biosynthetic process; positive regulation of tumor necrosis factor production; positive regulation of chemokine production; toll-like receptor 2 signaling pathway; negative regulation of interleukin-23 production; macrophage activation; detection of lipopolysaccharide; defense response to bacterium; positive regulation of transcription from RNA polymerase II promoter; I-kappaB phosphorylation; positive regulation of nitric-oxide synthase biosynthetic process; negative regulation of osteoclast differentiation; regulation of cytokine secretion; positive regulation of interleukin-12 production; positive regulation of JNK cascade; defense response to Gram-negative bacterium; positive regulation of interleukin-8 production; negative regulation of interferon-gamma production; positive regulation of MHC class II biosynthetic process; interferon-gamma production; lipopolysaccharide-mediated signaling pathway; B cell proliferation during immune response; positive regulation of tumor necrosis factor biosynthetic process; detection of fungus; MyD88-independent toll-like receptor signaling pathway; negative regulation of tumor necrosis factor production; MyD88-dependent toll-like receptor signaling pathway; positive regulation of interferon-gamma production; positive regulation of interleukin-12 biosynthetic process; negative regulation of interleukin-17 production; positive regulation of interferon-beta biosynthetic process; toll-like receptor signaling pathway; innate immune response; immune response; positive regulation of interleukin-1 production; positive regulation of inflammatory response Disease: Macular Degeneration, Age-related, 10
NCBI Summary:	The protein encoded by this gene is a member of the Toll-like receptor (TLR) family which plays a fundamental role in pathogen recognition and activation of innate immunity. TLRs are highly conserved from Drosophila to humans and share structural and functional similarities. They recognize pathogen-associated molecular patterns that are expressed on infectious agents, and mediate the production of cytokines necessary for the development of effective immunity. The various TLRs exhibit different patterns of expression. This receptor has been implicated in signal transduction events induced by lipopolysaccharide (LPS) found in most gram-negative bacteria. Mutations in this gene have been associated with differences in LPS responsiveness. Multiple transcript variants encoding different isoforms have been found for this gene. [provided by RefSeq, Jan 2012]
UniProt Code:	O00206
NCBI GenInfo Identifier:	20140413
NCBI Gene ID:	7099
NCBI Accession:	O00206.2
UniProt Secondary Accession:	O00206,Q5VZI8, Q5VZI9, Q9UK78, Q9UM57, A8K1Y8, A9XLP9 A9XLQ0, A9XLQ1, B4E194, D1CS52, D1CS53,
UniProt Related Accession:	O00206
Molecular Weight:	73,301 Da
NCBI Full Name:	Toll-like receptor 4
NCBI Synonym Full Names:	toll-like receptor 4
NCBI Official Symbol:	TLR4
NCBI Official Synonym Symbols:	TOLL; CD284; TLR-4; ARMD10
NCBI Protein Information:	toll-like receptor 4; hToll; homolog of Drosophila toll
UniProt Protein Name:	Toll-like receptor 4
UniProt Synonym Protein Names:	hToll; CD_antigen: CD284
Protein Family:	Toll-like receptor
UniProt Gene Name:	TLR4
UniProt Entry Name:	TLR4_HUMAN

*ノート: プロトコルは、各バッチ/ロットに固有です。正しい手順については、キットに含まれているプロトコルに従ってください。

ウェルに加える前に、SABCワーキング溶液とTMB基質を37°Cで少なくとも30分間平衡化します。サンプルと試薬を希釈するときは、完全に均一に混合する必要があります。各テストの標準曲線をプロットすることをお勧めします。

ステップ	プロトコル
1.	Set standard, test sample and control (zero) wells on the pre-coated plate respectively, and then, record their positions. It is recommended to measure each standard and sample in duplicate. Wash plate 2 times before adding standard, sample and control (zero) wells!
2.	Aliquot 0.1ml standard solutions into the standard wells.
3.	Add 0.1 ml of Sample / Standard dilution buffer into the control (zero) well.
4.	Add 0.1 ml of properly diluted sample ( Human serum, plasma, tissue homogenates and other biological fluids.) into test sample wells.
5.	Seal the plate with a cover and incubate at 37 °C for 90 min.
6.	Remove the cover and discard the plate content, clap the plate on the absorbent filter papers or other absorbent material. Do NOT let the wells completely dry at any time. Wash plate X2.
7.	Add 0.1 ml of Biotin- detection antibody working solution into the above wells (standard, test sample & zero wells). Add the solution at the bottom of each well without touching the side wall.
8.	Seal the plate with a cover and incubate at 37°C for 60 min.
9.	Remove the cover, and wash plate 3 times with Wash buffer. Let wash buffer rest in wells for 1 min between each wash.
10.	Add 0.1 ml of SABC working solution into each well, cover the plate and incubate at 37°C for 30 min.
11.	Remove the cover and wash plate 5 times with Wash buffer, and each time let the wash buffer stay in the wells for 1-2 min.
12.	Add 90 µl of TMB substrate into each well, cover the plate and incubate at 37°C in dark within 10-20 min. (Note: This incubation time is for reference use only, the optimal time should be determined by end user.) And the shades of blue can be seen in the first 3-4 wells (with most concentrated standard solutions), the other wells show no obvious color.
13.	Add 50 µl of Stop solution into each well and mix thoroughly. The color changes into yellow immediately.
14.	Read the O.D. absorbance at 450 nm in a microplate reader immediately after adding the stop solution.

ELISAアッセイを実施する場合、可能な限り最良の結果を達成するためにサンプルを準備することが重要です。以下に、さまざまなサンプルタイプのサンプルを準備するための手順のリストを示します。

サンプルタイプ	プロトコル
血清	If using serum separator tubes, allow samples to clot for 30 minutes at room temperature. Centrifuge for 10 minutes at 1,000x g. Collect the serum fraction and assay promptly or aliquot and store the samples at -80°C. Avoid multiple freeze-thaw cycles. If serum separator tubes are not being used, allow samples to clot overnight at 2-8°C. Centrifuge for 10 minutes at 1,000x g. Remove serum and assay promptly or aliquot and store the samples at -80°C. Avoid multiple freeze-thaw cycles.
プラズマ	Collect plasma using EDTA or heparin as an anticoagulant. Centrifuge samples at 4°C for 15 mins at 1000 × g within 30 mins of collection. Collect the plasma fraction and assay promptly or aliquot and store the samples at -80°C. Avoid multiple freeze-thaw cycles. Note: Over haemolysed samples are not suitable for use with this kit.
尿および脳脊髄液	Collect the urine (mid-stream) in a sterile container, centrifuge for 20 mins at 2000-3000 rpm. Remove supernatant and assay immediately. If any precipitation is detected, repeat the centrifugation step. A similar protocol can be used for cerebrospinal fluid.
細胞培養上清	Collect the cell culture media by pipette, followed by centrifugation at 4°C for 20 mins at 1500 rpm. Collect the clear supernatant and assay immediately.
細胞溶解物	Solubilize cells in lysis buffer and allow to sit on ice for 30 minutes. Centrifuge tubes at 14,000 x g for 5 minutes to remove insoluble material. Aliquot the supernatant into a new tube and discard the remaining whole cell extract. Quantify total protein concentration using a total protein assay. Assay immediately or aliquot and store at ≤ -20 °C.
組織ホモジネート	The preparation of tissue homogenates will vary depending upon tissue type. Rinse tissue with 1X PBS to remove excess blood & homogenize in 20ml of 1X PBS (including protease inhibitors) and store overnight at ≤ -20°C. Two freeze-thaw cycles are required to break the cell membranes. To further disrupt the cell membranes you can sonicate the samples. Centrifuge homogenates for 5 mins at 5000xg. Remove the supernatant and assay immediately or aliquot and store at -20°C or -80°C.
組織溶解物	Rinse tissue with PBS, cut into 1-2 mm pieces, and homogenize with a tissue homogenizer in PBS. Add an equal volume of RIPA buffer containing protease inhibitors and lyse tissues at room temperature for 30 minutes with gentle agitation. Centrifuge to remove debris. Quantify total protein concentration using a total protein assay. Assay immediately or aliquot and store at ≤ -20 °C.
母乳	Collect milk samples and centrifuge at 10,000 x g for 60 min at 4°C. Aliquot the supernatant and assay. For long term use, store samples at -80°C. Minimize freeze/thaw cycles.
